Input:AC 220 v + 10%, 50/60 hz
Speed:50 ~ 750 BPM
Size:Main unit410*460*320mm,Heating sensor310*130*190mm,Water tank520*450*980mm
Seal.Dia:Φ15mm~Φ55mm,or Φ30mm~Φ75mm,or Φ60mm~Φ140mm (select one from three)
1. Pure digital circuit design: adopts imported chips and the world's advanced FPGA algorithm to realize multi-threaded high-speed parallel (can process various input and output signals required by electromagnetic induction aluminum foil sealing machine at the same time), and the processing speed is a few of that of a single-chip microcomputer. Ten times, the sealing is more stable, and the equipment failure rate is lower.
2. Low EMI design: greatly reduce the harmonic pollution to the power grid, effectively improve the performance and reliability of its own equipment, and at the same time protect the reliable operation of surrounding electrical equipment;
3. Anti-surge design: each time the equipment is powered on, the city current slowly rises to the specified value, which has no hard impact on the grid, and at the same time meets its own high-power power requirements;
4. Host anti-corrosion design: 304 stainless steel shell material, the device circuit and cooling air duct are completely isolated (the upper and lower layers are divided into two layers, the device circuit is placed in the upper "closed" cavity, and the lower layer is the cooling air duct), which effectively prevents the main circuit The device is corroded by corrosive gas, thereby improving the reliability and life of the equipment itself;
5. Heating sensor: newly added temperature control protection function, when the temperature of the heating sensor is too high, the machine will stop output immediately, and the alarm light will sound and light alarm at the same time. The unique tunnel structure and multi-directional three-dimensional induction mode make the sealing effect more ideal. The electromagnetic output is stable and uniform and the power is strong, and it can be compatible with various bottle sealing. The sensor is rotatable and interchangeable. It is suitable for the sealing of bottles with different sizes and calibers. One machine has multiple functions and saves costs;
6. Stable output voltage: In the case of mains fluctuations or large load changes, the system will automatically stabilize the effective output voltage of the heating head. It will not be too high or low, or fluctuating high and low, to maintain the consistency of the sealing effect and avoid Poor sealing of some bottles;
7. Stable and reliable performance: The machine has a special design and a complete self-diagnosis and protection system. Under various extreme conditions (such as overheating, overload, water shortage, and abnormal mains, etc.), the equipment can self-protect in time, and it can sound externally. Light alarm can accurately determine the fault location, which is convenient for users to check and remove the fault;
8. Humanized operation interface: adopts full digital control concept, with power-off memory function, digital display, panel touch button design, operation is extremely simple and convenient;
9. Equipped with smart water tank: The water tank provides circulating cooling water for the heating head, can monitor the circulating water flow and water temperature in real time, and provide fault (water shortage or overheating) alarm and diagnosis, so that the host and sensor can work stably and reliably for a long time. At the same time, the output power of the sensor head is greatly increased, and the life of the sensor is prolonged.
10. The same water-cooled equipment can be interchanged for general use: effectively reduce the cost of use and more convenient maintenance.
11. The new modular smart box technology: equipment is anti-corrosion, moisture-proof, dust-proof, anti-electromagnetic interference, long service life, convenient maintenance, and greatly reduces costs.

Standard configuration: one Main unit,one Heating sensor, one water tank

It is specially used for the sealing of bottled products, especially with the unique function of sealing special-shaped bottles.

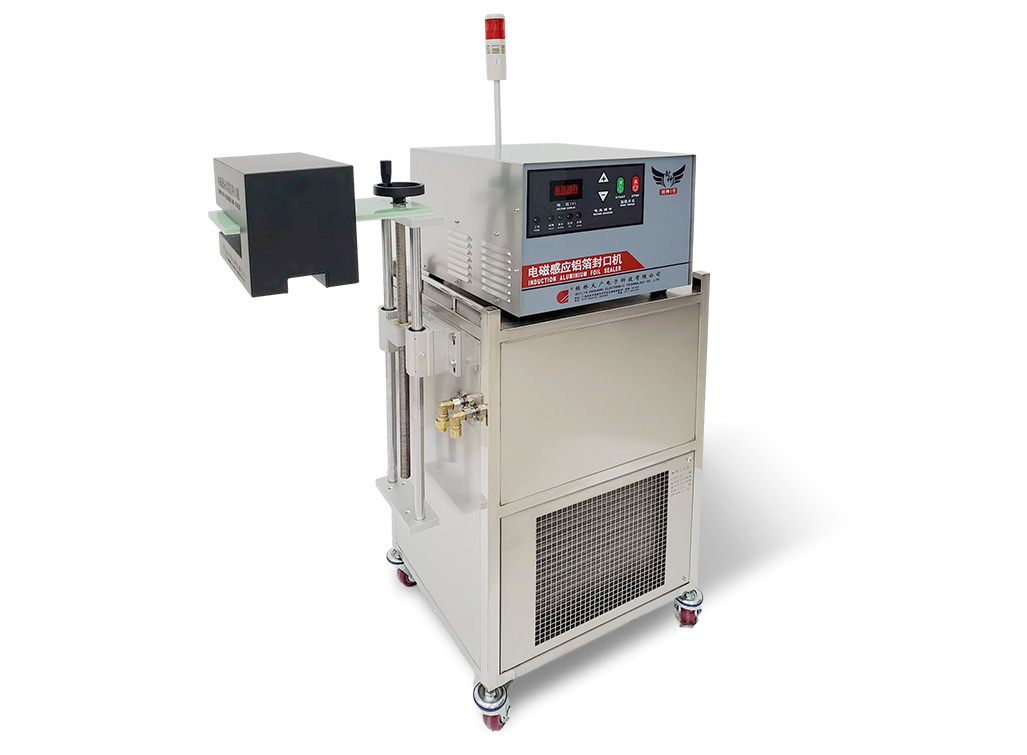

This equipment is a water-cooled desktop computer with high comprehensive performance. It has overcome the incompatibility problem of sealing diameter in the past, and has high efficiency and stable operation. It is fully suitable for the sealing needs of enterprises of all sizes.

The digital circuit is more stable.

Input:AC 220 V±10%,50/60 Hz
Sealing speed:40~280 bottles per minute
Sealing height(from ground):76-1180 mm

Machine size:

Main unit 410*460*320 mm

Heating sensor 310*130*190 mm

Water tank 520*450*980 mm

Sealing diameter:Φ15 mm~Φ55 mm, or Φ30 mm~Φ75 mm,or  Φ60 mm~Φ140 mm (select one from three)
N.W / G.W: 76 KG / 100 KG
