Input:AC 220V±10%,50/60Hz
Height:760-1180 mm
Size:Main unit410*460*320mm,Heating sensor310*130*190mm,Water tank520*450*980mm
Seal.Dia:Φ15mm~Φ55mm,or Φ30mm~Φ70mm,or Φ60mm~Φ140mm(select one from three)
1. Pure digital circuit design: adopts imported chips and the world's advanced FPGA algorithm to realize multi-threaded high-speed parallel (can process various input and output signals required by electromagnetic induction aluminum foil sealing machine at the same time), and the processing speed is a few of that of a single-chip microcomputer. Ten times, the sealing is more stable, and the equipment failure rate is lower.
2. It has the function of blocking the bottle and stopping control to prevent the expansion of unexpected production accidents (optional).
3. The anti-corrosion design of the host, the complete isolation design of the device circuit and the cooling air duct, greatly improve the reliability and life of the equipment itself.
4. With external control connection function, it is convenient for system integration and remote monitoring of production line (optional).
5. Full touch screen control, good vision and convenient operation.
6. The outer shell is reasonably designed with high-quality 304 stainless steel, which meets the requirements of GMP.
7. Compatible with various sealing functions, especially for special-shaped containers, with uniform and beautiful sealing.
8. Heating sensor: newly added temperature control protection function, when the temperature of the heating sensor is too high, the machine will immediately stop output, and the alarm light will sound and light alarm at the same time. Unique tunnel structure, omnidirectional three-dimensional induction sealing, strong power. The sensor is rotatable and interchangeable. It is suitable for sealing bottles of different sizes and calibers. One machine has multiple uses and saves costs.
9. High-performance host: The host has a full range of anti-corrosion, low EMI design, anti-surge design, stable output voltage, and intelligent protection functions such as overvoltage, overcurrent, and overheating, and its performance is stable and reliable.
10. High-efficiency intelligent water tank: real-time monitoring of water flow, automatic alarm when the water tank is short of water, easy to check, so that the host and sensor can work stably and reliably for a long time.
11. Brand-new modular smart box technology: equipment anti-corrosion, moisture-proof, dust-proof, anti-electromagnetic interference, long service life, convenient maintenance, and greatly reduce costs.

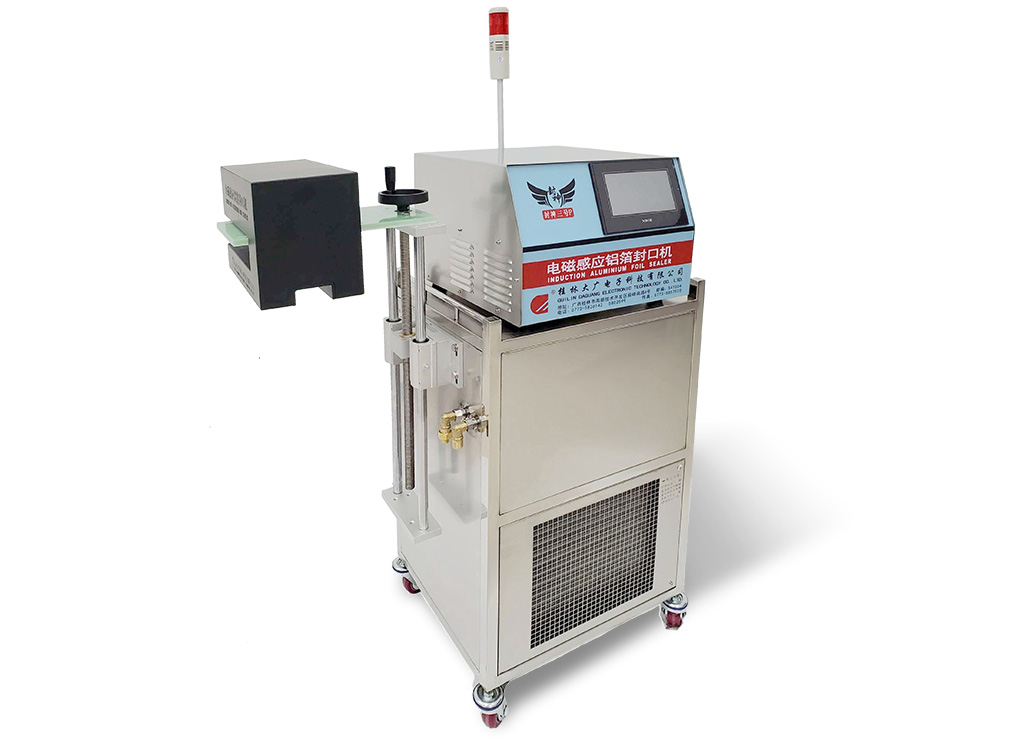

Standard configuration: one Main unit,one Heating sensor ,one Water tank

This machine is dedicated to food, pesticides, cosmetics, grain and oil products, industry sectors such as sealing, especially with the distinctive function of special container sealing.

Cooling method:Water cooled
Control circuit: Digital circuit
Input:AC 220V±10%,50/60 Hz
Output:4000W Max(Adjustable)
Sealing speed:100~750 bottles per minute
Sealing height(from ground):760-1180 mm

Machine size:

Main unit 410 mm*460 mm*320 mm,

Heating sensor 310 mm*130 mm*190 mm,

Water tank 520 mm*450 mm*980 mm

Sealing diameter: Φ15 mm~Φ55 mm,or Φ30 mm~Φ70 mm ,or Φ60 mm~Φ140 mm(select one from three)

N.W /G.W:75 KG / 100 KG
